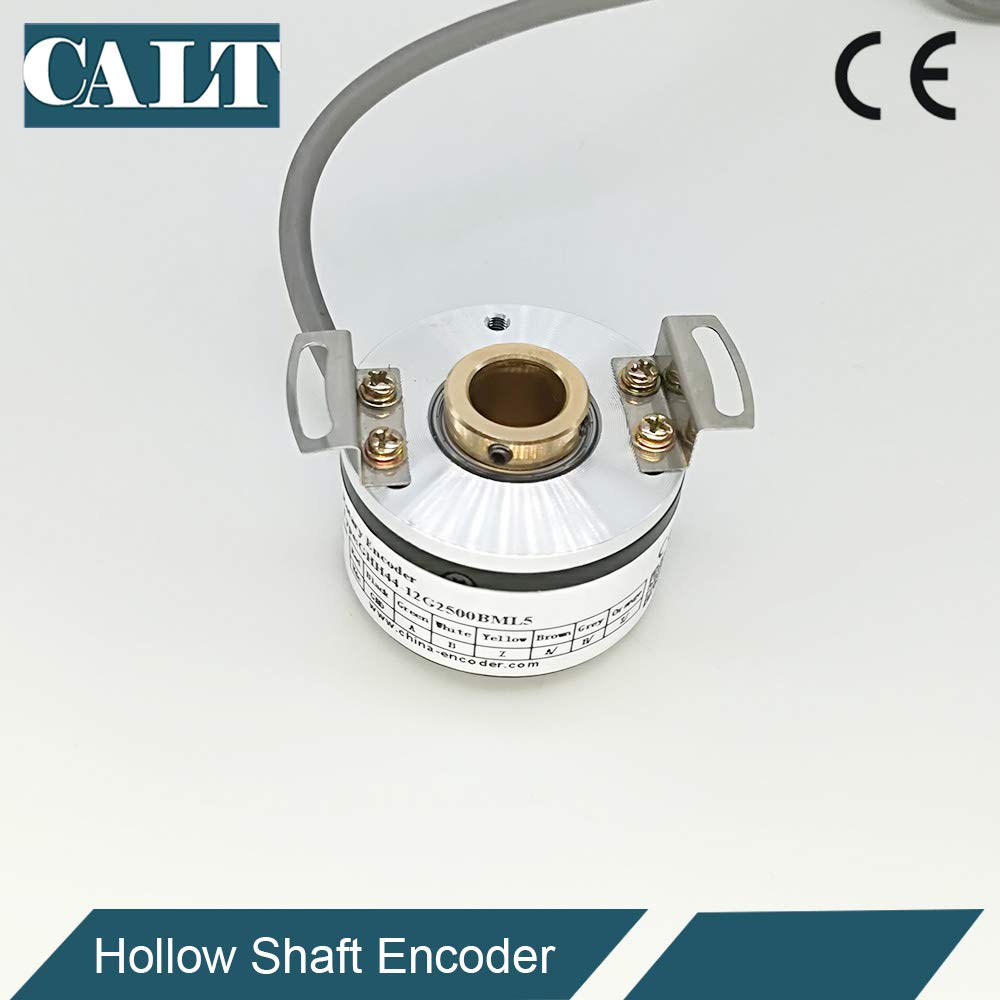

44mm OD 8mm Aperture Hollow Shaft Rotary Encoder 1000P/R Push-Pull Output - Precision Motion Control for CNC, Robotics & Industrial Automation
$45.1
$82
-45% OFF
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
33549864
Guranteed safe checkout
Description
Specification: Color: Like the picture show power supply:DC5V~26V voltage Speed: more than 6000 r / min Size: Shaft: 8mm Dia, Shell Size: 44mm Dia, Output: Push pull output with ABZ signals Connection: When 3 channels: Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z When 6 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z, Brown=A-, Grey=B-, Orange= Z-
Features
44mm outer diameter, 8mm aperture Hollow Shaft
1000P/R, Push pull output with ABZ signals
Power supplyDC5V~26V voltage
1 meter cable
Application Angle, Position, Speed, Length, diplacement measuring
