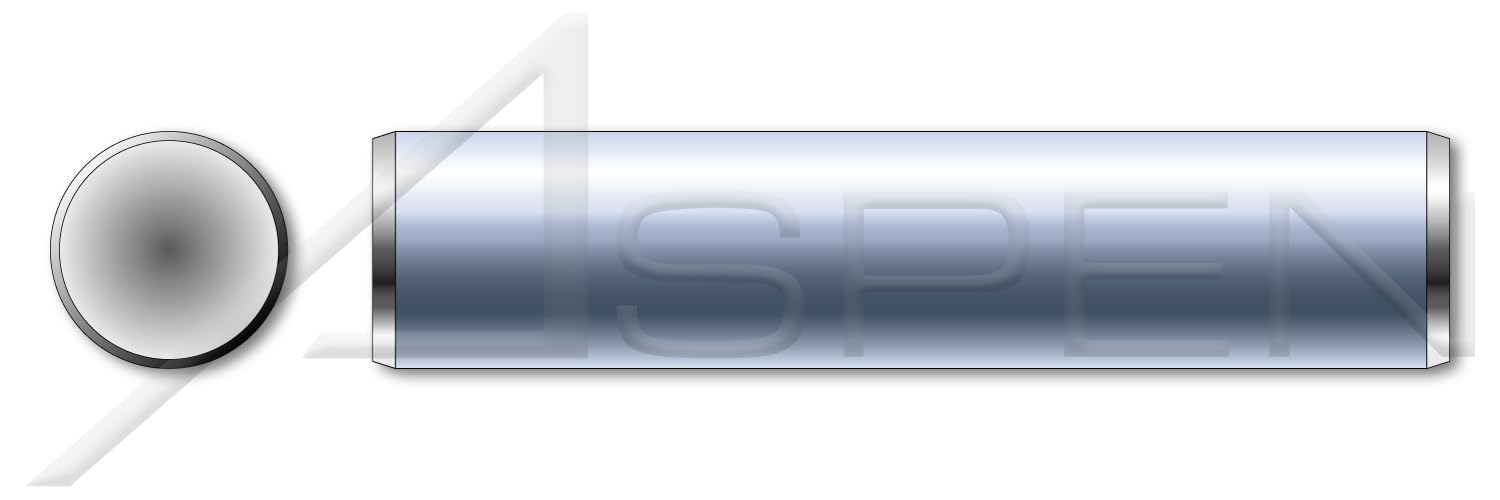

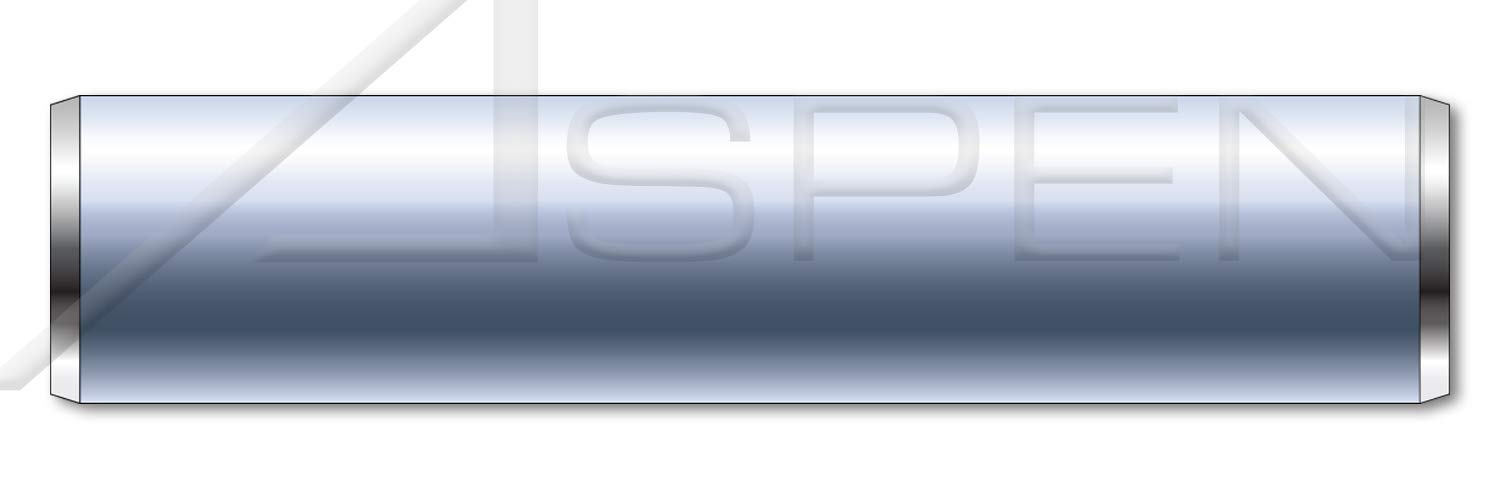

500pcs M2.5 X 10mm DIN 7 Type A Metric Solid Dowel Pins - A4 Stainless Steel Precision Dowels for Machinery, Automotive & Industrial Assembly
Free shipping on all orders over $50
7-15 days international
11 people viewing this product right now!
30-day free returns
Secure checkout
66903993
Description
Diameter (Nominal): M2.5Length (Nominal): 10mmCategory: Solid Dowel PinsSystem of Measurement: MetricBrand: Aspen Fasteners®Form and Design: Rounded EndsTolerance: Tolerance m6Material: Stainless SteelMaterial Grade: A4 Stainless SteelMaterial Processes: UnhardenedCoating: UncoatedStandards and Specifications: DIN 7 Type ANB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.
Features
Using receiving holes, dowel pins use friction to hold parts of an assembly together.
Can be used as pivot pins, hinges, or locating pins.
A4 stainless steel is functionally equivalent to 316 grade and is also known as "marine grade".
Stainless steel significantly improves resistance to tarnishing or corrosion.
