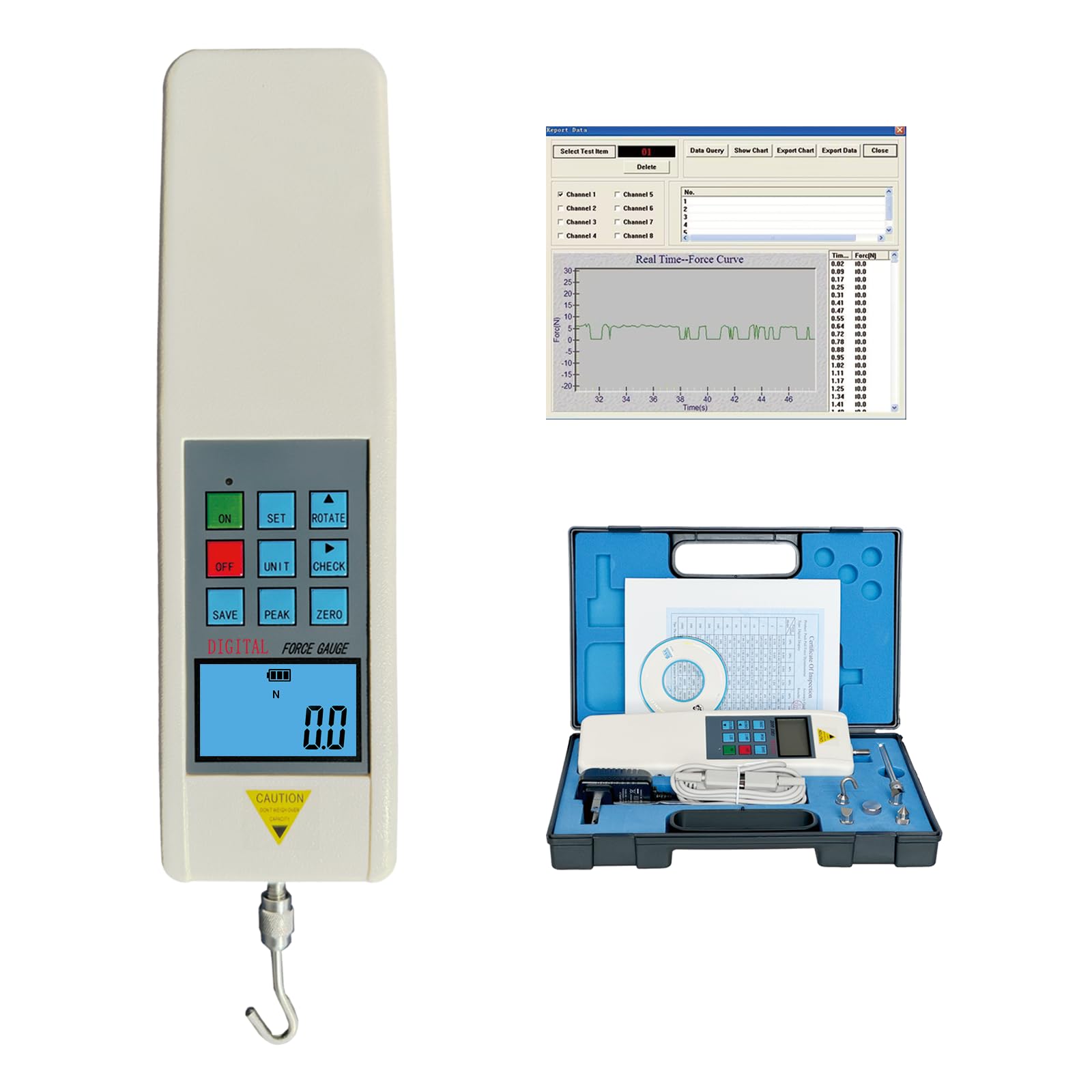

HF-5 Digital Push Pull Gauge Force Tester 5N Capacity with LCD Display - Perfect for Quality Control, Mechanical Testing & Laboratory Measurements

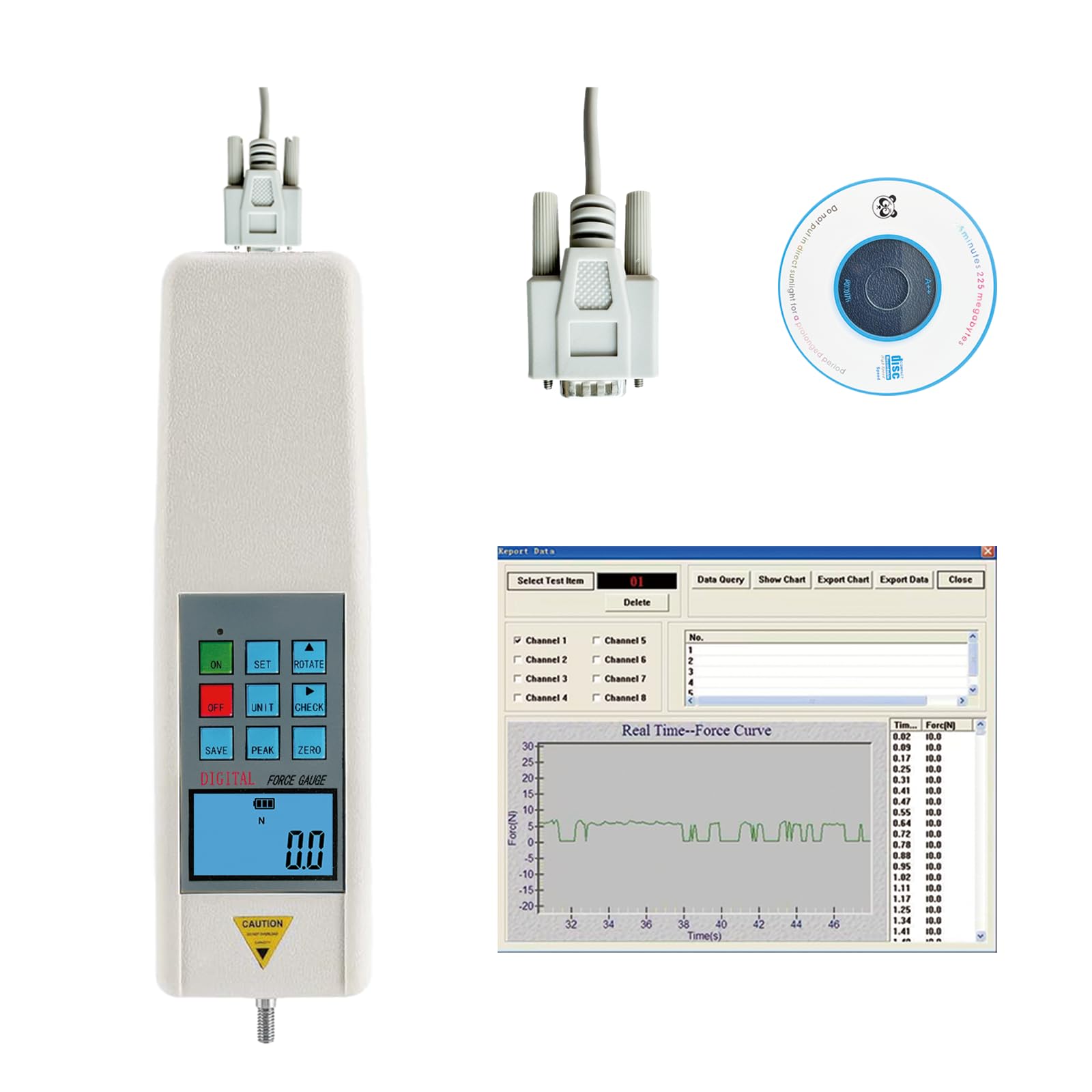

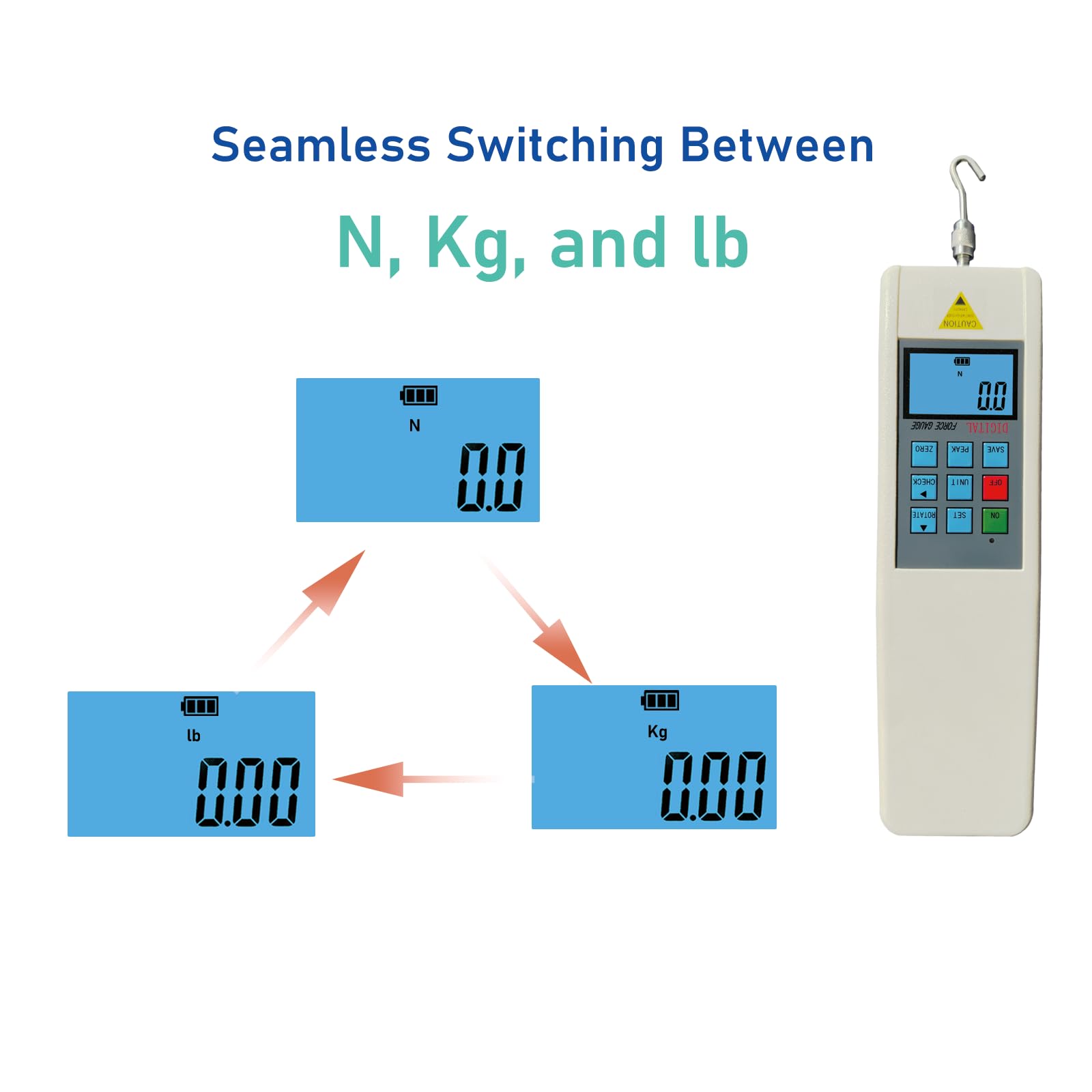

Application The HF-5 digital force gauge features a compact design and high accuracy, making it easy to operate and convenient to carry. It is widely used in various industries, including electronics, high and low voltage electrical appliances, hardware, automotive parts, ignition systems, light industry, mechanical applications, and textiles. It is ideal for testing pull or push loads, insertion forces, and conducting destructive experiments. Functional Characteristics: Testing Modes: Offers five testing modes and three display methods for maximum efficiency.Measurement Units: Supports Newton, Kilogram, and Pound for flexible unit conversion.Gravity Acceleration Setting: Users can input local gravity values for improved accuracy in testing and conversions.Peak Value Maintenance: Displays peak values until manually reset, enhancing data tracking.Automatic Peak Function: Allows setting of automatic peak time from 1 to 9999 seconds.Statistical Analysis: Max, min, and comparison values can be set; alarms sound if limits are exceeded.Data Storage: Capable of storing up to 447 testing values for later reference.Data Output: Enables connection to computers for detailed analysis.Environmental Protection: Auto shut-off after 10 minutes of inactivity, with an option to disable.Quality Power Supply: Compatible with 100V to 240V, featuring protection against short circuits, leakage, and overload.Switch Contact Testing: Special function for precise make-break testing of switch contacts.Large Display: Features a 6-digit large screen for easy reading.Low Battery Shutdown: Automatically powers off to prevent inaccuracies from low battery levels. Details Screen Flipping The ROTATE button allows to flip the measured value display by 180 degrees for easy reading. Software Included Users can use the CD to transfer stored data to the computer, checking, printing testing times, average value, maximum value, and minimum value to determine whether the test results meet the specified requirements.The software can generate a graph of force value and time. RS232 Cable This configuration includes an RS232 cable for connecting the force gauge to your computer, allowing users to transfer stored data easily.Additionally, we offer another configuration with a USB cable, giving users the option to choose their preferred connection method. Specification Peak Load Value 5N / 0.5Kg / 1.1Lb Load Division Value 0.001N / 0.0001Kg / 0.0001Lb Accuracy ±0.5％ Power 7.2V 1.2V×6 NiMH batteries Data Interface RS232 Nine-hole Socket Charging Time 4~6 hours Battery Continuous Use Time About 15 hours Battery Life ≥300 times Charger Input: AC 100-240V 50HZ | Output: DC 12V 500mA Working Temperature 5℃-35℃ Transport Temperature -10℃-60℃ Relative Humidity 15％-80％RH HF-500 with RS232 Cable HF-500 with USB Cable HF-5 with RS232 Cable Manual Force Gauge Test Stand Electric Force Gauge Test Stand Electric Motor Horizontal Test Stand Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 26 — 4.5 out of 5 stars 3 — — — Price $135.00$135.00 $149.99$149.99 $138.00$138.00 $660.00$660.00 $1,511.00$1,511.00 $1,599.00$1,599.00 Maximum Load 500N / 50Kg / 110Lb 500N / 50Kg / 110Lb 5N / 0.5Kg / 1.1Lb Maximum Load: 500N Maximum Load: 500N Maximum Load: 500N Load Division Value 0.1N / 0.01Kg / 0.01Lb 0.1N / 0.01Kg / 0.01Lb 0.001N / 0.0001Kg / 0.0001Lb Stroke: 180 mm Stroke: 200mm Stroke: 150 mm Data Interface RS232 USB RS232 Height: 500 mm Test Speed: 25-280 mm/min (choose by customer) Test Speed: 20-500 mm/min
