VSDISPLAY 7 Inch IPS LCD Screen 800x1280 Resolution 350nit Brightness with Mini HDMI Controller Board - Perfect for Raspberry Pi, DIY Projects and Digital Signage Displays
Free shipping on all orders over $50
7-15 days international
19 people viewing this product right now!
30-day free returns
Secure checkout
77596470
Description

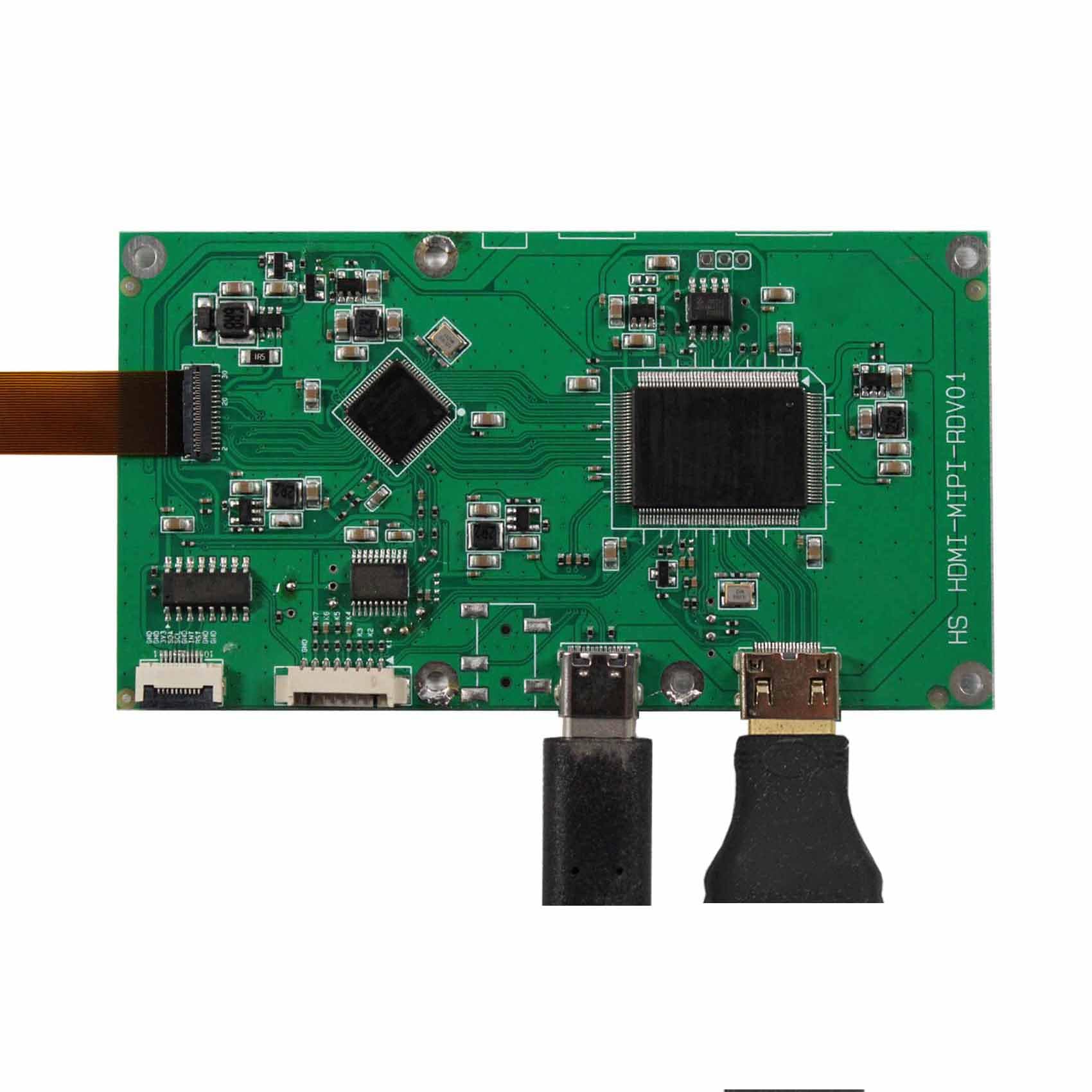

LCD Controller Board: Input Power Adapter: Type-C connectorCome In Standby Model When Not Input SignalInput: Mini HD-MI Output: DP USB (max 1500mA)Audio Output: SpeakerBoard Size: 100mm x55 mm x5 mm7" VS070MP-V1 LCD screen:Display Mode AAS, Normally Black, TransmissiveResolution 800RGB)×1280Outline Size 99.8(W)×161.05(H) ×3(D) mmDisplay Area94.2(W)×150.72(H) mmBrightness 350 cd/m² (Typ.)Contrast Ratio 600:1 (Typ.)Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface mipi , 31 pins ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× HD-MI Controller Board VS-HDMIPI-RDV01 1× 7inch VS070MP IPS LCD screen
Features
【IPS full viewing angle screen】350nit brightness ,7 inch mipi screen ,resolution 1280x800,Outline Size 99.8(W)×161.05(H) ×3(D) mm,Display Area 94.2(W)×150.72(H) mm.
【Viarious Video Input Port】Video Input Mini HD-MI ,Output DP USB (max 1500mA),Audio Output Speaker,can connecting PC computer ,laptop ,Rpi or other ports with these ports.
【Input power】Type-C connector,Pls prepare the power cable seperately .

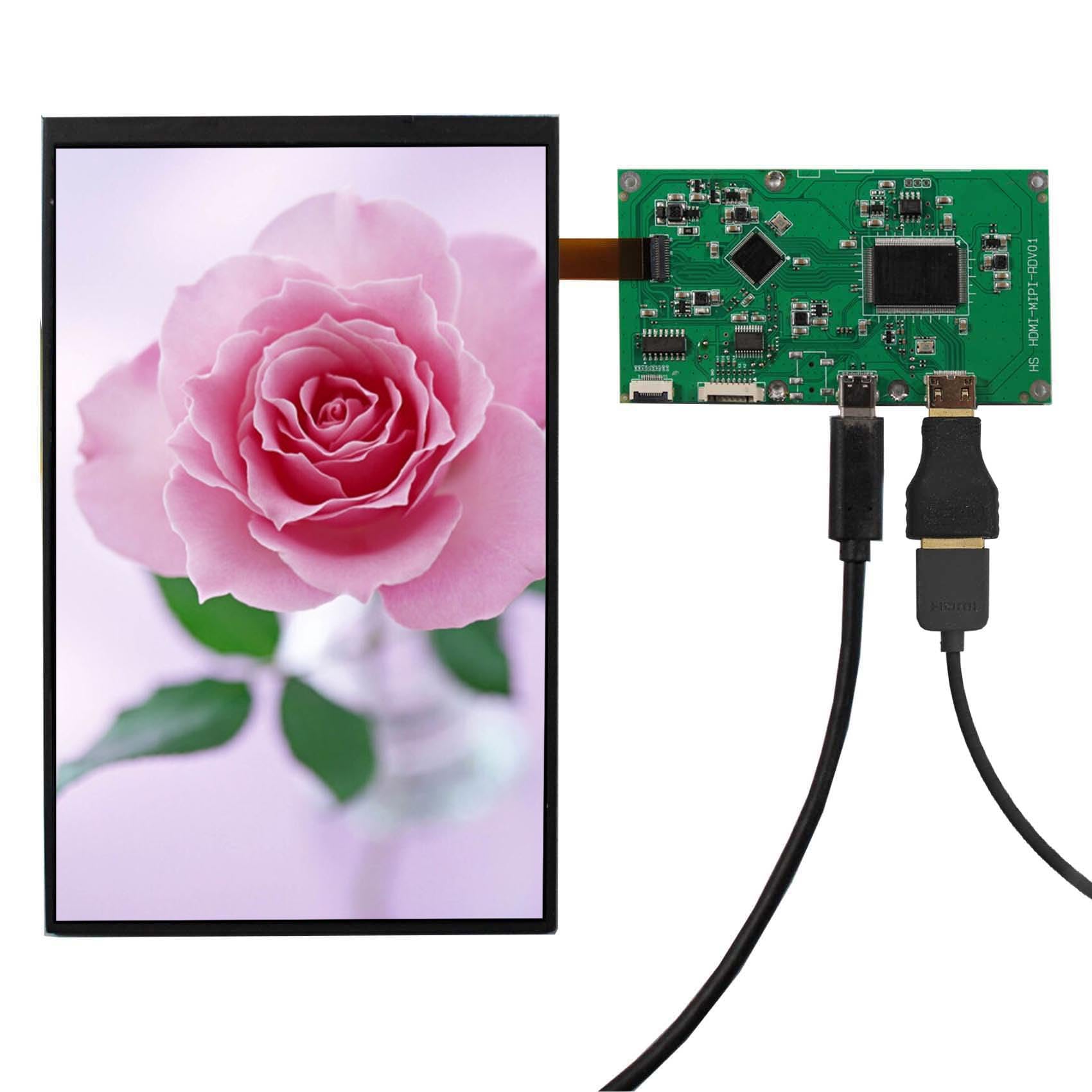

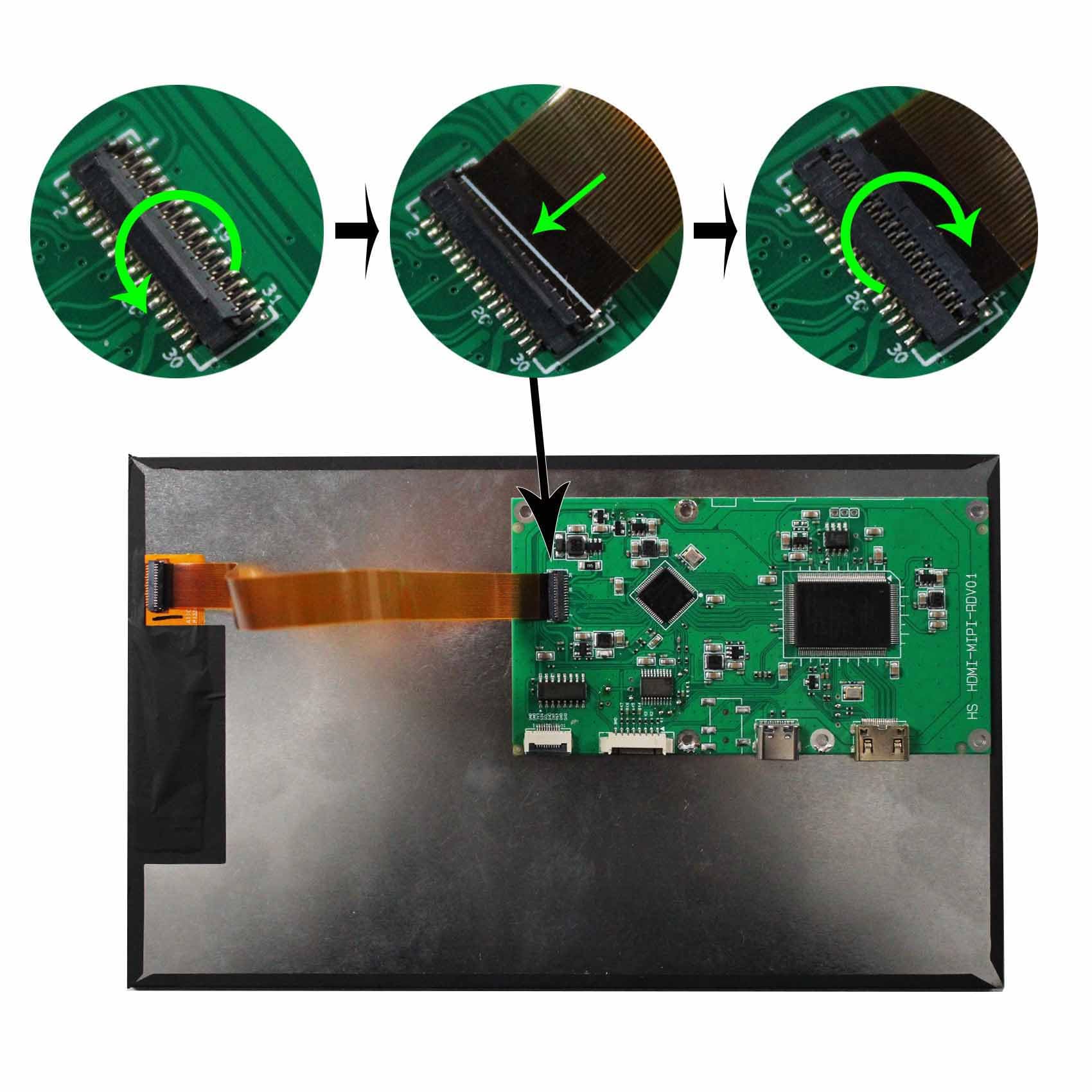

【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.

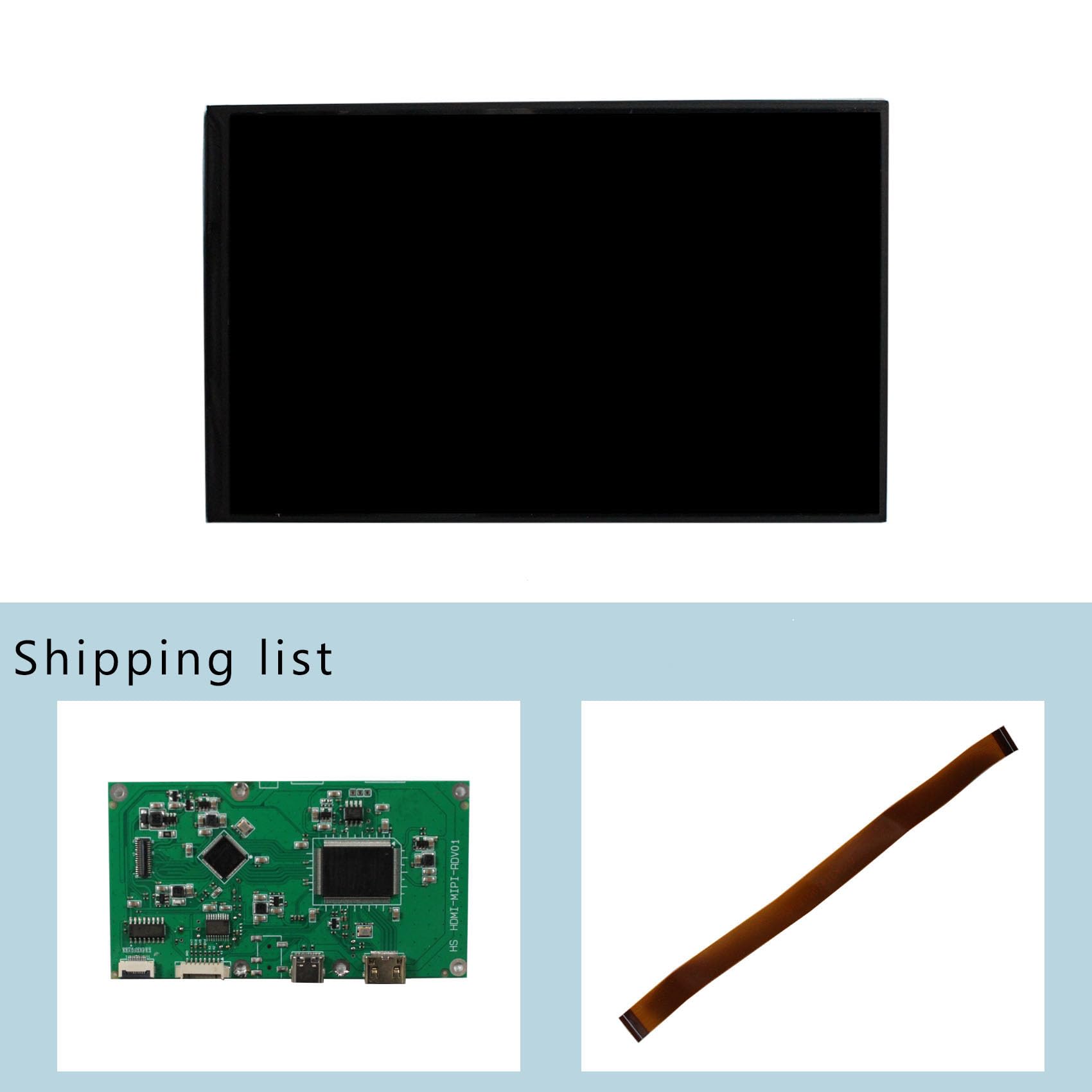

【Packing lists】1× HD-MI Controller Board VS-HDMIPI-RDV01 ,1× 7inch VS070MP IPS LCD screen.
